Retiring ramp incl Magnet, ELB-75, 230VAC

Art.no: 2500008

Retiring ramp ELB-75 Magnet with magnetic dampening in both directions. Mounting above or below the lift car. Stroke length: 30 mm power consumption: 60 W tractive force: 7 kg weight: 6 kg voltage: built-in rectifier for 230 VAC The ramp is maneuvered from above or from below and can be turned for right or left-hand mounting.

Product documents

Product information

Origin:
Hissmekano, own production
Functional area:
Swing doors
Product type:
Retiring ramp
Brand compatibility:
Hissmekano
Model:
ELB-75
Mounting plate for Retiring ramp ELB-75
Mounting plate for Retiring ramp ELB-75Art.no: 2500009
Guide lugs for ELB-75
Guide lugs for ELB-75Art.no: 2500022

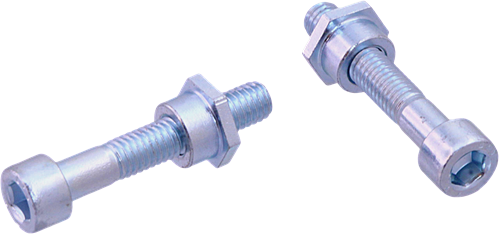

Screw set, Hissmekano, for ELB-75, 2 pcs.
